Steel repository
1.Agricultural equipment
Shengbang Agricultural equipments are steel workshop building. There are eleven kinds of products in this series. All these products are durable, environment-friendly and waterproofed.
The steel structure agricultural equipment processes the superior properties of china steel structures, which conform to the mainstream of building materials selection at present.
2.The detail material for the steel structure

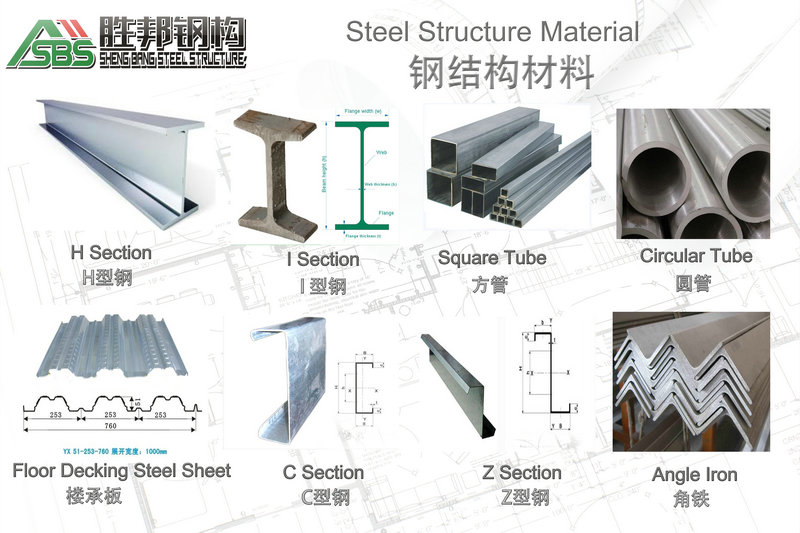

The steel structure material is included the H section,I section,Square tube,Circular Tube,Floor decking steel sheet,C section,Z section,Angle iron , Steelbar ,Steel plate .
1)Z-Section Sheet
Z steel is common cold bending thin-wall steel, whose thickness is commonly between 1.6-3.0mm, section heights between 120-350mm. Processing materials is hot rolled (paint), galvanized. It is processed according to perform standards. Z steel is usually applied in large steel structure factory building.
2)Hot rolled I-shape beams can be divided into common i-steel and light beams.
Common i-steel
Main purpose: Ordinary beams are widely used in various building structures, Bridges, vehicles, support and machinery, etc.
Light beams
Flange of common i-steel and light beams are gradually becoming thinner from root to the edge with certain angle. Compared with ordinary beams, hot rolling light beams has wider leg and thinner waist in same wait height conditions. Guaranteed the bearing capacity, the light beams have better stability, metal saving and better economic effect than ordinary beams.
Main use: The same with ordinary beams, it is mainly used in factories, Bridges and other large structures and vehicle manufacturing, etc.
3.Product detials
| 1.Opinions | 1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts. |
| 2)We can also make and develop new parts according to customers' drawings and detailed dimensions. | |
| 2. Specifications | 1) Size: MOQ is 200m2, width X length X eave height, roof slope |
| 2) Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors | |
| 3) Base: Cement and steel foundation bolts | |
| 4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section | |
| 5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc | |
| 6) C or z purlin: Size from C120~C320, Z100~Z200 | |
| 7) Roof and wall panel: Single colorful corrugated steel sheet 0.326~0.8 mm thick, (1150 mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50 mm ~ 100 mm. | |
| 8) Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc | |
| 9) Surface: Two lays of Anti-rust Painting | |
| 10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ | |
| 3. Design Parameters | If you need we design for you, pls supply us the following parameter together with detail size |
| 1) Live load on roof (KN/M2) | |
| 2) Wind speed(KM/H) | |
| 3) Snow load (KG/M2) | |
| 4) Earthquake load if have | |
| 5) Demands for doors and windows | |
| 6) Crane (if have) , Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure! |
4.The Whole Steel Structure Workshop
The Whole Workshop Including purlin supporting system, knee brace, roof ridge, self-tapping screw, sunlight panel, rivets, ventilation device, roofing panel, wrapping cover, insulation material, wall panel, wall wrapping cover, corner wrapping cover, steel structure stairs, roof purlin, wall beam, crane, wall pillar, transverse supporting system, gutter’s wrapping cover, wall purlin, corner column, steel structure stairs, rains out, pillar, awning, rolling shutter door, crane beam, vertical supporting system, steelbar, 13020 screws, floor deck board, concrete slab, H type steel frame base, Hg334 corrugated single steel plate(1.00mm)
5.Service flow path
Discussing Project——Design Plan Drawing——Budget & Quote——Confirm Drawing&Quotation——Sign the Contract——Make the shop Drawing——Manufacturing——Transportation——Shipping——Foundation Ready——Guidance Installation——Finshed Installation
